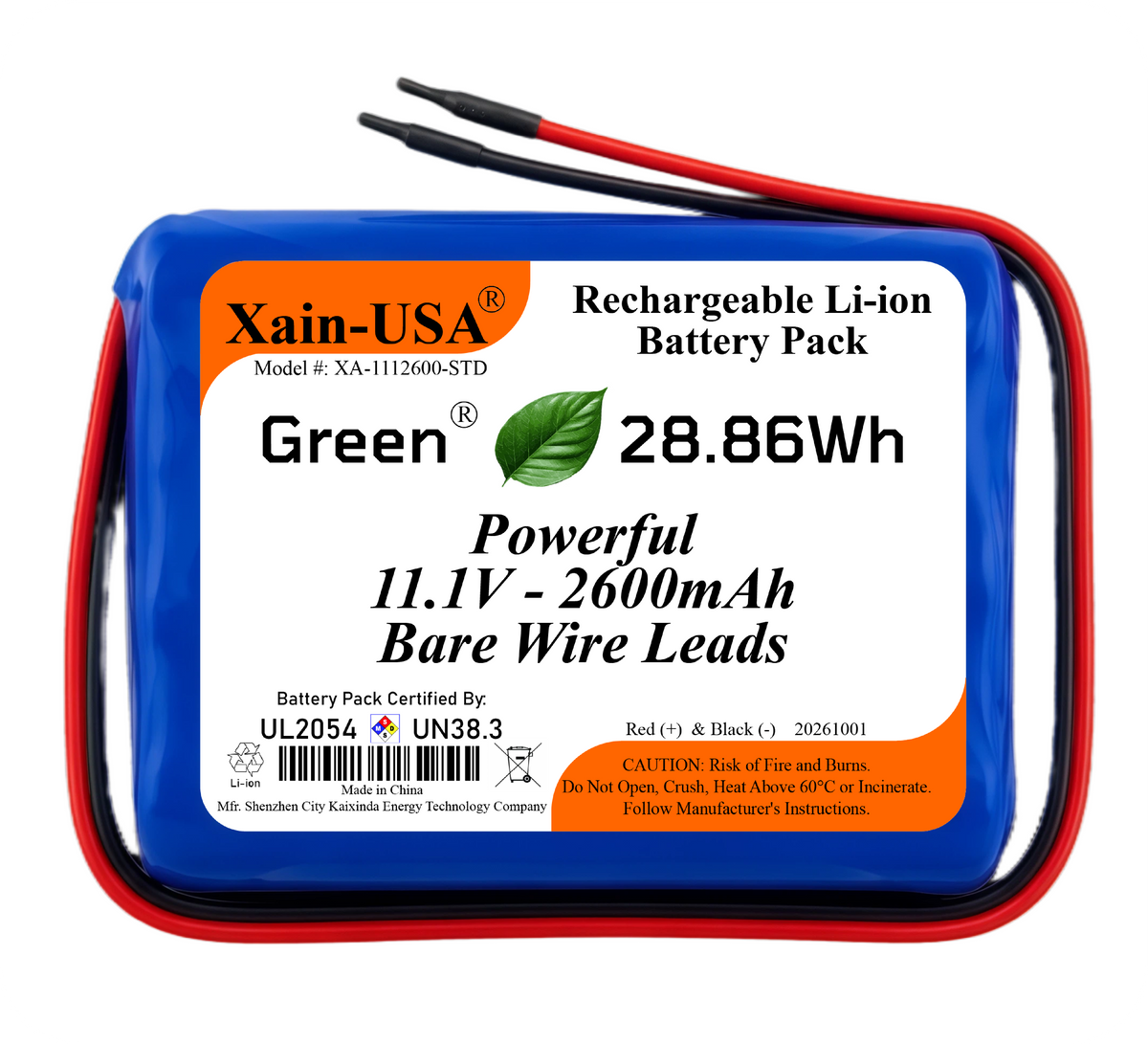

UL2054 Certified, 11.1V 2600mAh Li-ion Battery, 5A Cont., Bare Wire Leads

Key Features:

• Xain-USA Replacement Battery Pack – Designed for compatible 11.1V equipment and custom battery applications requiring bare wire leads.
• 11.1V 2600mAh / 28.86Wh – Compact rechargeable Li-ion battery pack with a 3S1P cell configuration.
• 5A Continuous Discharge Rating – Built to deliver up to 5 amps of continuous discharge for compatible equipment.
• Bare Wire Leads – Ideal for applications requiring direct wiring, reuse of an existing connector, or installation of a custom connector.

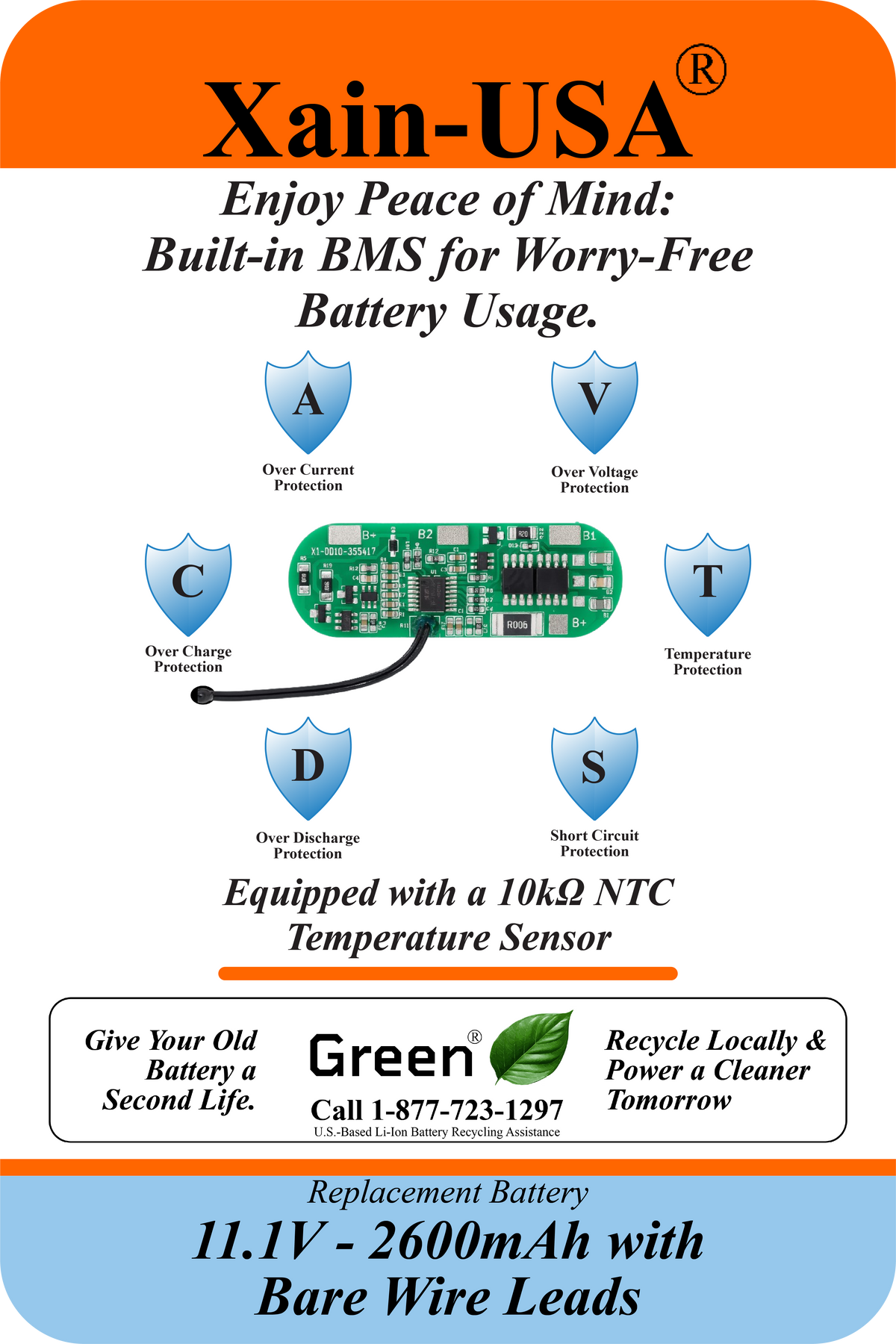

• Built-in BMS Protection – Integrated Battery Management System provides protection for reliable battery operation.
• 10K NTC Thermistor – Integrated temperature sensor for compatible charging and equipment systems.
• UL 2054 Tested & Passed – Finished battery pack tested to applicable UL 2054 requirements.
• UN 38.3 Tested & Passed – Tested to applicable lithium battery transportation requirements.
• Xain-USA Quality Assurance – Battery packs are inspected and tested prior to shipment.

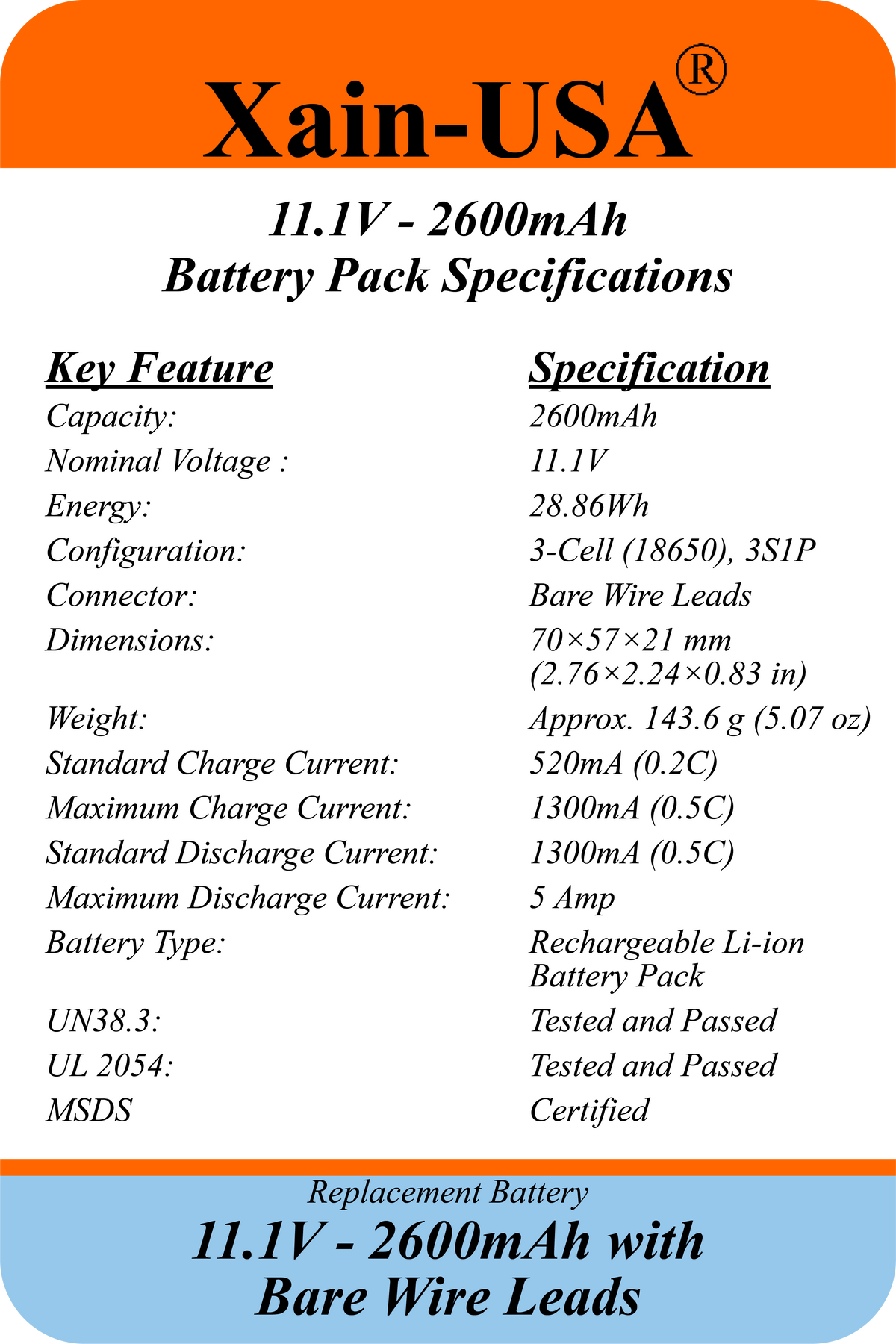

Key Specifications:

Brand: Xain-USA
Battery Type: Rechargeable Li-ion Battery Pack
Nominal Voltage: 11.1V
Maximum Charge Voltage: 12.6V
Capacity: 2600mAh
Energy: 28.86Wh
Cell Configuration: 3S1P, 3 × 18650 Cells
Connection: Bare Wire Leads
Continuous Discharge Rating: Up to 5A
Protection: Built-in Battery Management System (BMS)
Temperature Monitoring: 10K NTC Thermistor

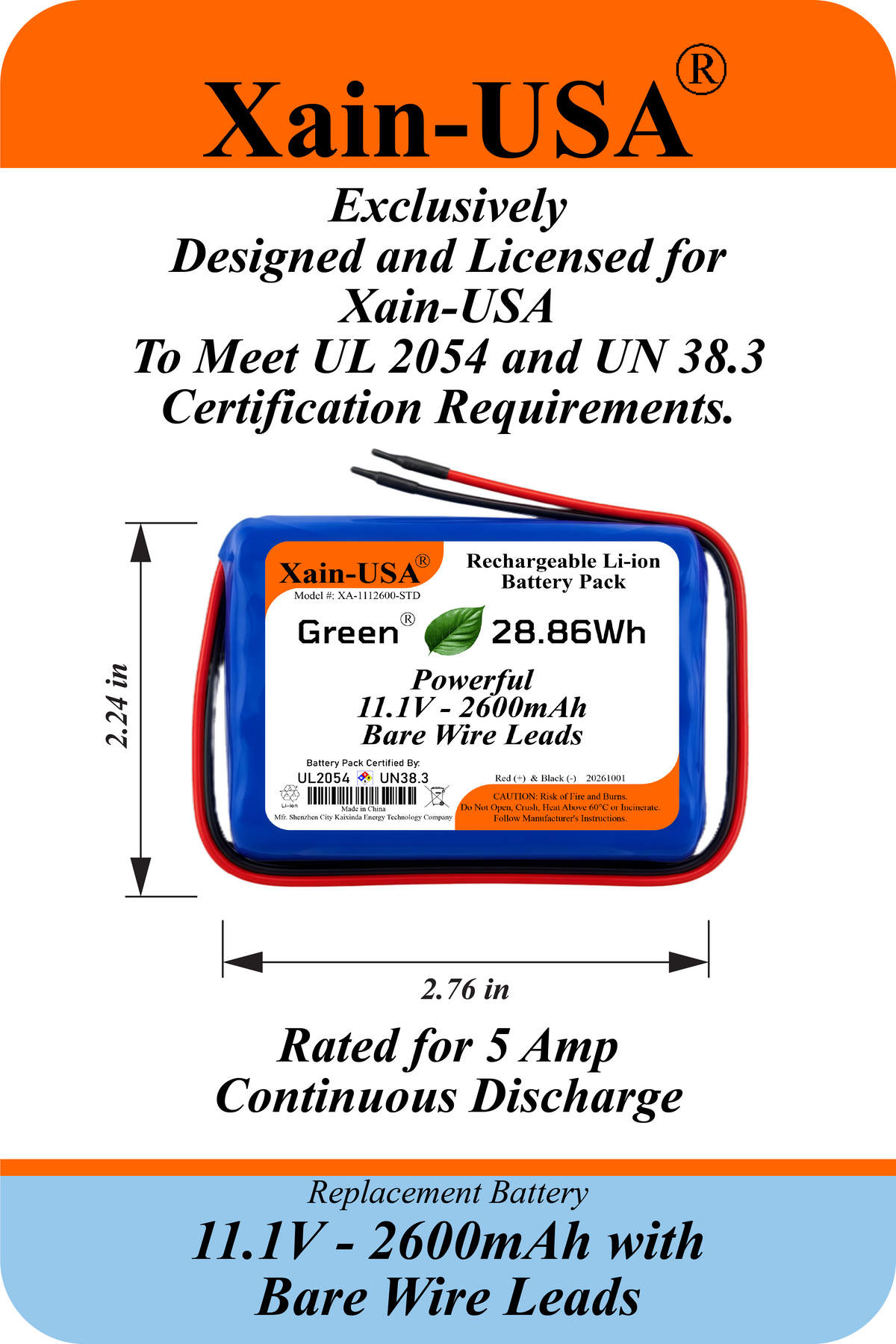

Dimensions: 70 × 57 × 21 mm (2.76 × 2.24 × 0.83 in)
Approx. Weight: 143.6 g (5.07 oz)

Standard Charge Current: 520mA (0.2C)
Maximum Charge Current: 1300mA (0.5C)
Standard Discharge Current: 1300mA (0.5C)
Maximum Continuous Discharge Current: 5A

UL 2054: Tested and passed
UN 38.3: Tested and Passed
MSDS: Documentation Available

Common Applications:

Suitable for compatible 11.1V applications including:

• DIY electronics
• Cordless equipment
• Robotics
• Audio equipment
• Home automation
• Portable lighting
• Surveillance and security cameras
• Electronic control systems
• Custom battery projects
• Replacement battery applications requiring bare wire leads

Product Description:

The Xain-USA 11.1V 2600mAh rechargeable Li-ion battery pack is designed for compatible equipment requiring a compact, protected 3S1P battery with flexible bare-wire connectivity. With a rated energy capacity of 28.86Wh and a 5A continuous discharge capability, this battery pack is suitable for a wide range of compatible electronic equipment and custom applications.

The pack includes an integrated Battery Management System (BMS) for battery protection and a 10K NTC thermistor for temperature monitoring in compatible systems.

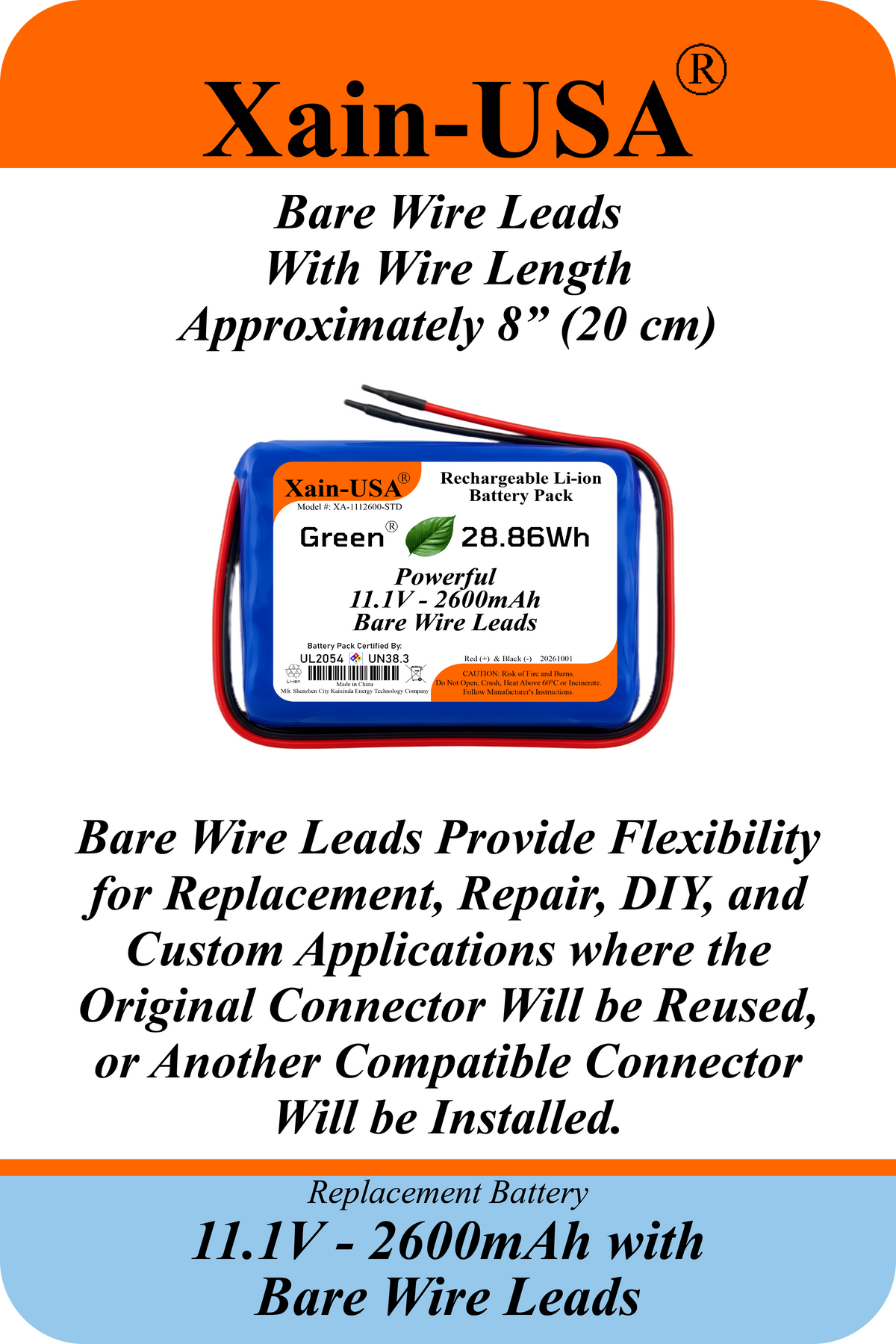

The bare wire leads allow the installer to reuse an existing connector, install a required connector, or connect the battery directly to compatible equipment.

Xain-USA battery packs are inspected and tested prior to shipment. The finished pack has been tested and passed to UL 2054 and UN 38.3 requirements, with MSDS documentation available.

Xain-USA Quality & Support

• U.S.-based seller and support
• Battery packs inspected and tested prior to shipment
• Built-in BMS protection
• Temperature monitoring with 10K NTC
• UL 2054 and UN 38.3 testing
• MSDS documentation available
• 1-Year Xain-USA Warranty

Important Compatibility Information:

This battery is supplied with bare wire leads and no pre-installed equipment connector.

Before purchasing, please verify:

• Voltage
• Battery dimensions
• Available installation space
• Required discharge current
• Wire polarity
• Charging requirements
• Connector requirements

This battery is designed for systems using an 11.1V nominal / 12.6V maximum-charge 3S Li-ion battery pack.

Do not select a replacement battery based on voltage and capacity alone. Always verify dimensions, polarity, wiring, charging requirements, and current requirements before installation.

To ensure the longevity and safety of your lithium-ion (Li-ion) batteries, follow these care instructions:

• Avoid Extreme Temperatures
• Partial Charge is Better
• Avoid Overcharging
• Minimize Exposure to High Discharge Rates
• Store Properly When Unused
• Use Proper Chargers and Cables
• Keep Battery Contacts Clean
