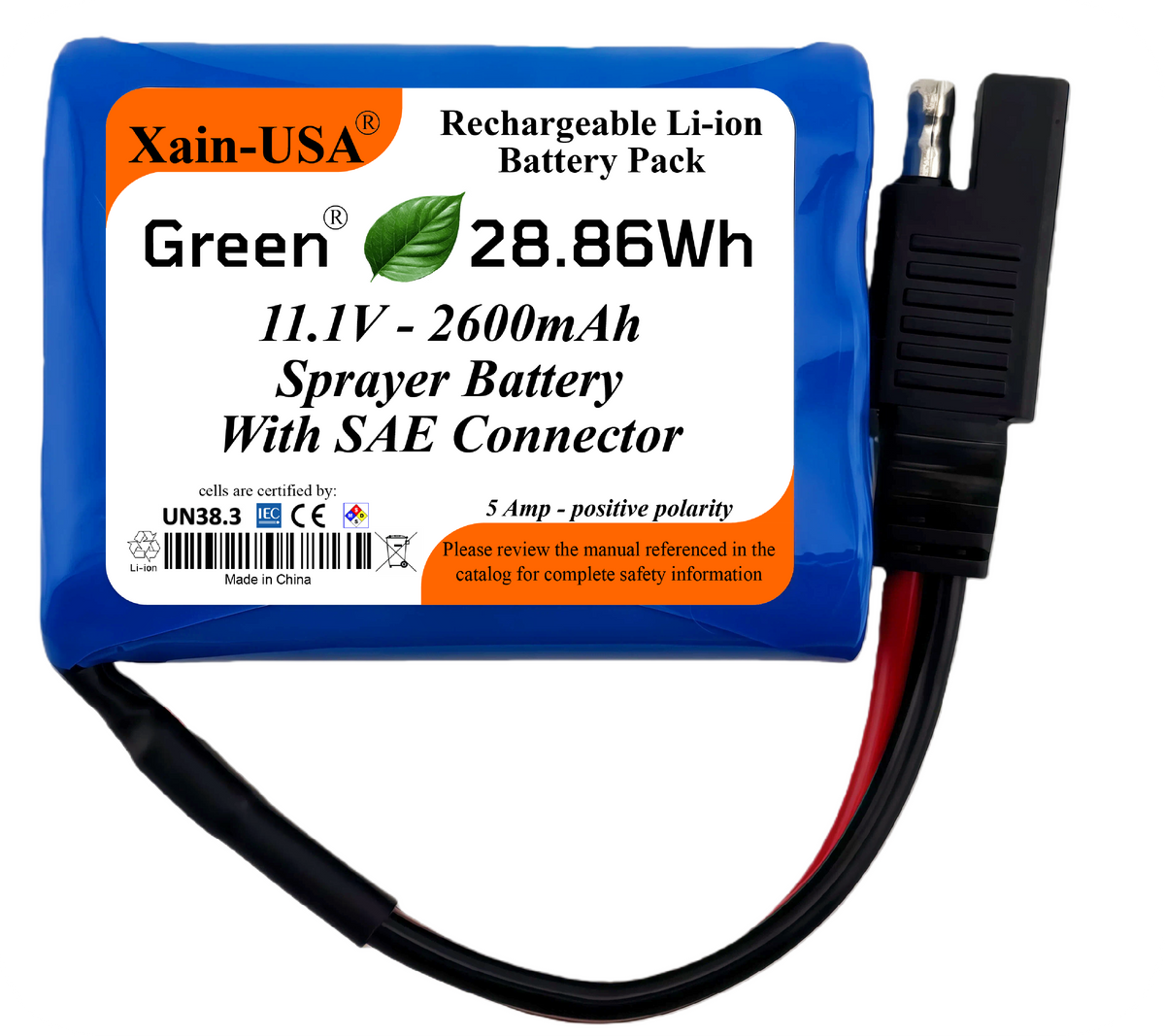

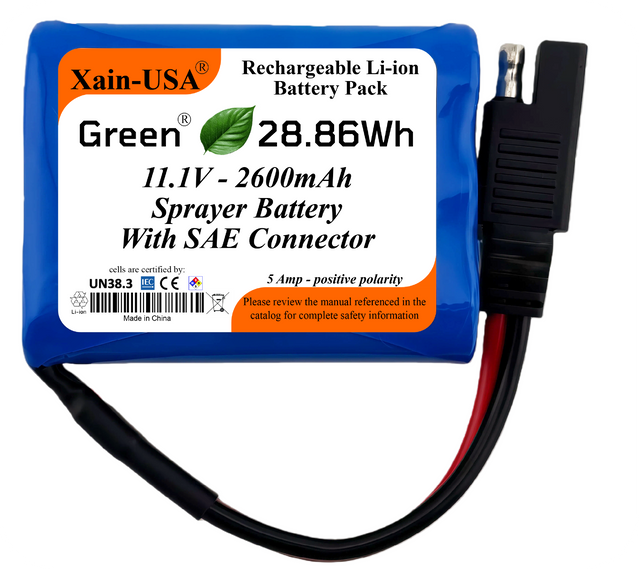

12V 2600mAh Replacement Battery for 1 GPM Farm Sprayers | SAE 2-Pin Connector | 5A Continuous Discharge | Built-in BMS

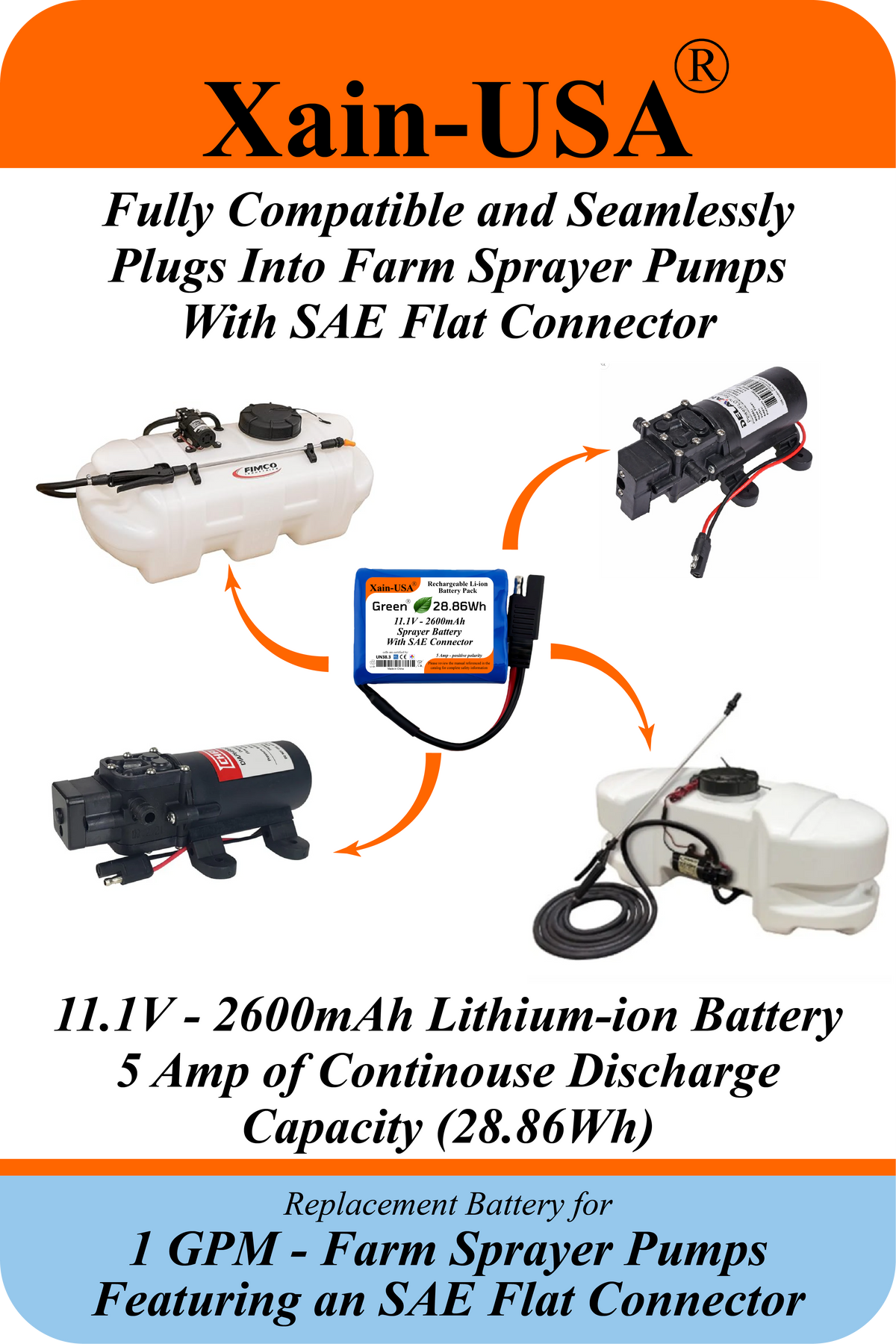

Common Applications

Designed as a replacement battery for compatible 12V 1 GPM farm and agricultural sprayers using the matching SAE 2-pin connector and operating within the battery's electrical specifications.

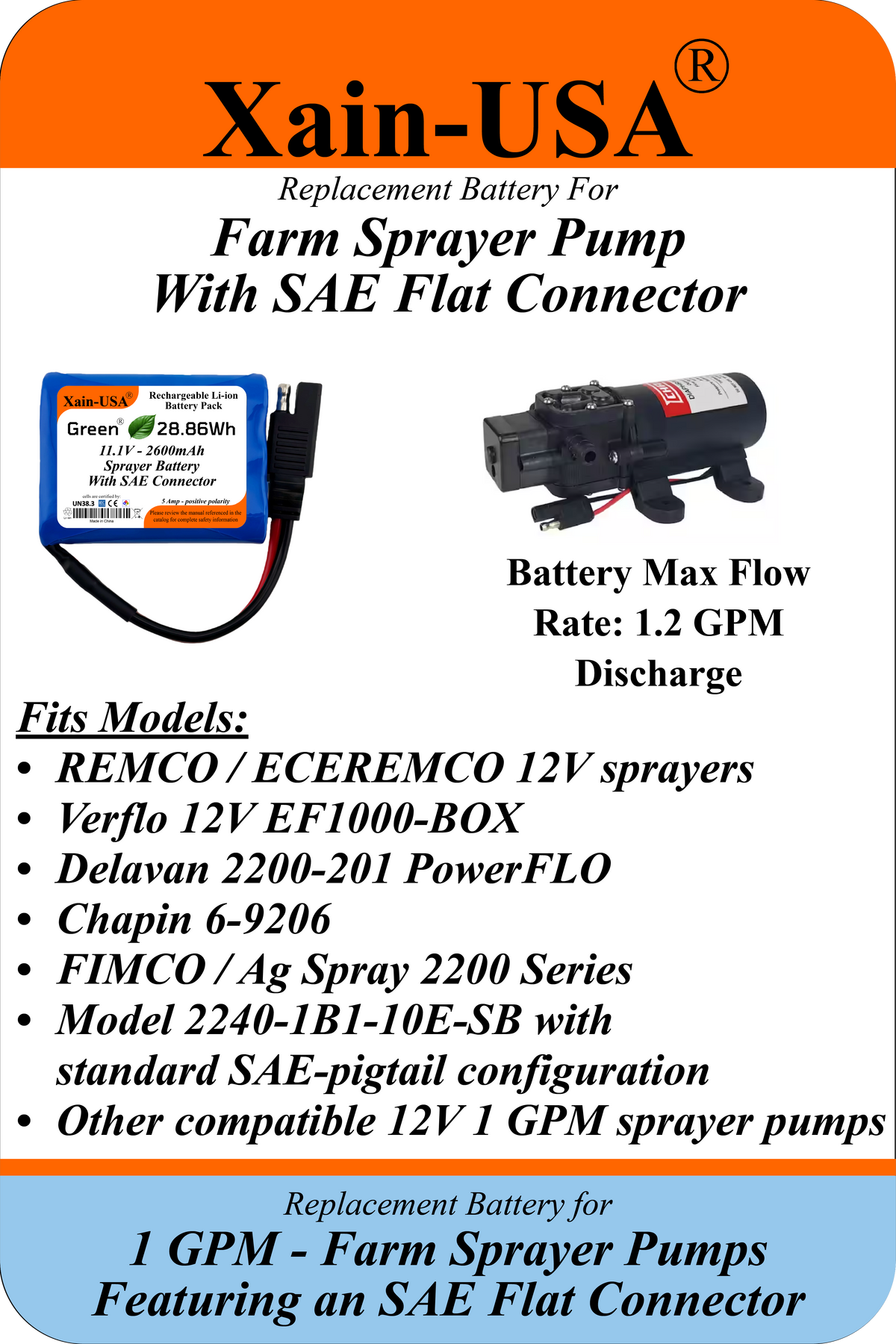

Common applications may include:

• REMCO / ECEREMCO 12V sprayers
• Verflo 12V EF1000-BOX
• Delavan 2200-201 PowerFLO
• Chapin 6-9206
• FIMCO / Ag Spray 2200 Series
• Model 2240-1B1-10E-SB with standard SAE-pigtail configuration
• Other compatible 12V 1 GPM sprayer pumps

IMPORTANT: Sprayers may use different batteries, connectors, polarity, and power requirements even within the same product family. Please compare the connector, polarity, dimensions, voltage, and power requirements with your original battery before ordering.

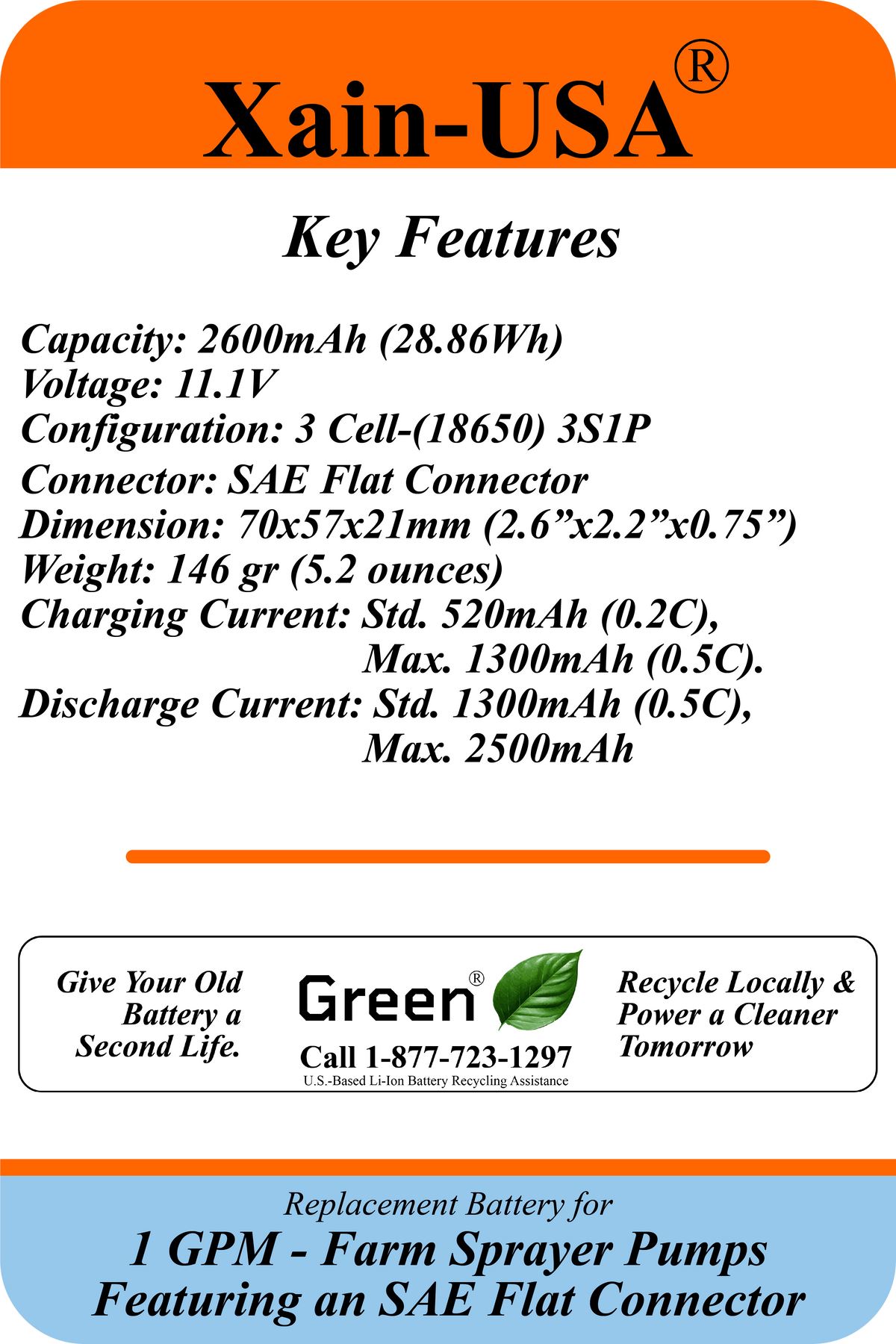

Specifications

• Part Number: 12V-2600-1GPM
• Application: Compatible 12V 1 GPM farm sprayers and pumps
• Battery Type: Rechargeable Lithium-Ion
• Nominal Voltage: 11.1V
• Fully Charged Voltage: 12.6V
• Capacity: 2600mAh
• Energy: 28.86Wh
• Configuration: 3S1P
• Continuous Discharge: Up to 5A
• Connector: SAE 2-Pin
• Protection: Built-in Battery Management System (BMS)
• Dimensions: 2.72" × 2.20" × 0.71" (69 × 56 × 18 mm)
• Battery Weight: Approx. 5.0 oz (142 g)
• Shipping Weight: Approx. 8 oz
• Warranty: 1-Year U.S.-Based Warranty

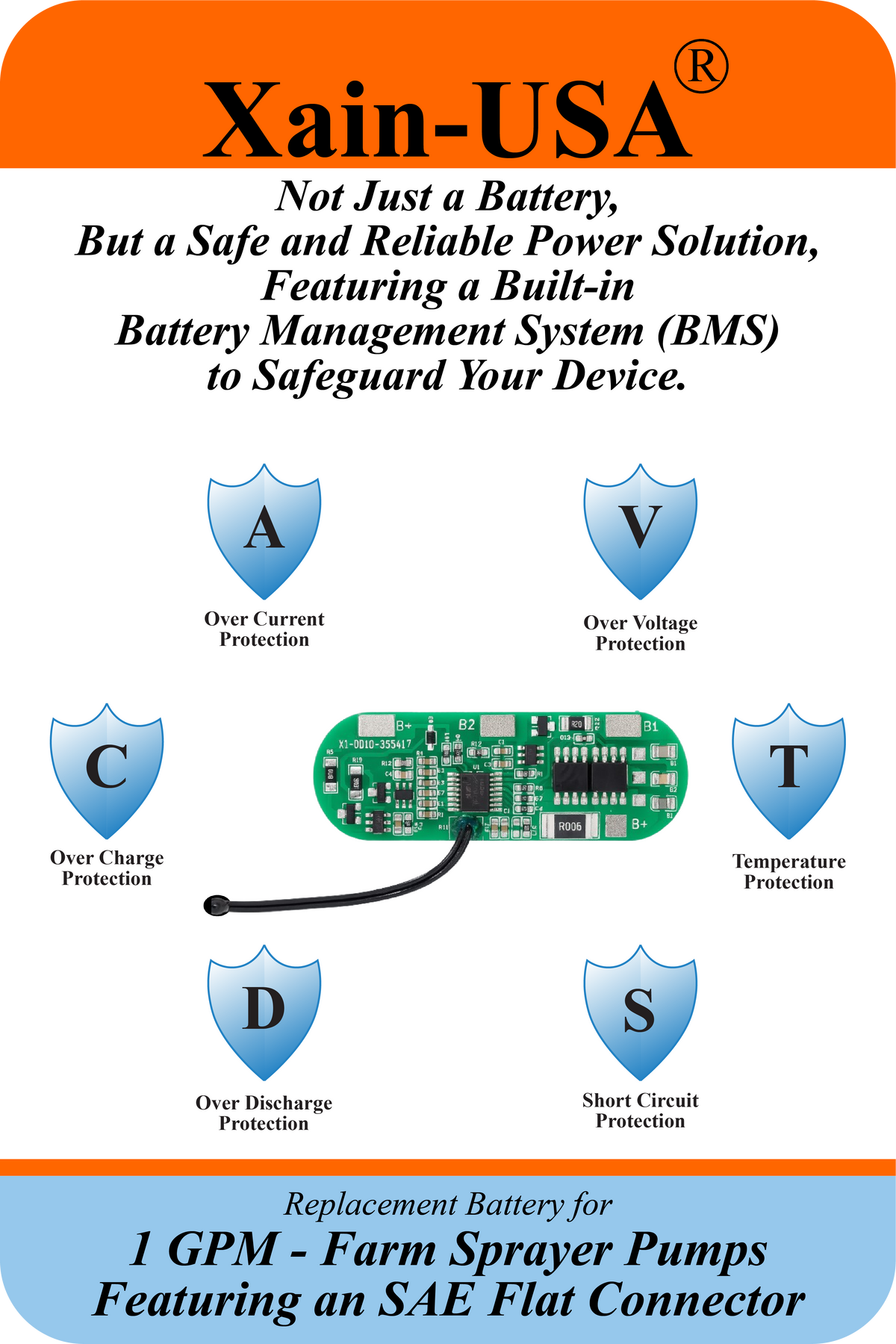

Enhanced Safety with Built-In Protection

The integrated Battery Management System (BMS) provides multiple layers of protection designed to help safeguard the battery during normal operation, including protection against:

• Overcharging
• Over-discharging
• Overcurrent
• Short circuits

This built-in protection helps provide dependable operation for compatible farm sprayer applications.

Quality You Can Count On

Quality Components: Manufactured using carefully selected lithium-ion cells and components for dependable performance.

Rigorous Testing: Battery packs undergo quality-control testing to verify voltage, capacity, connector configuration, and overall operation before shipment.

Ready for the Job: With up to 5A continuous discharge, this battery is designed to support compatible 1 GPM sprayer pumps while providing portable rechargeable power.

Before You Buy

For the best fit and to help avoid unnecessary returns, please compare your original battery with this listing before ordering.

Verify:

• Voltage: 11.1V nominal / 12.6V fully charged

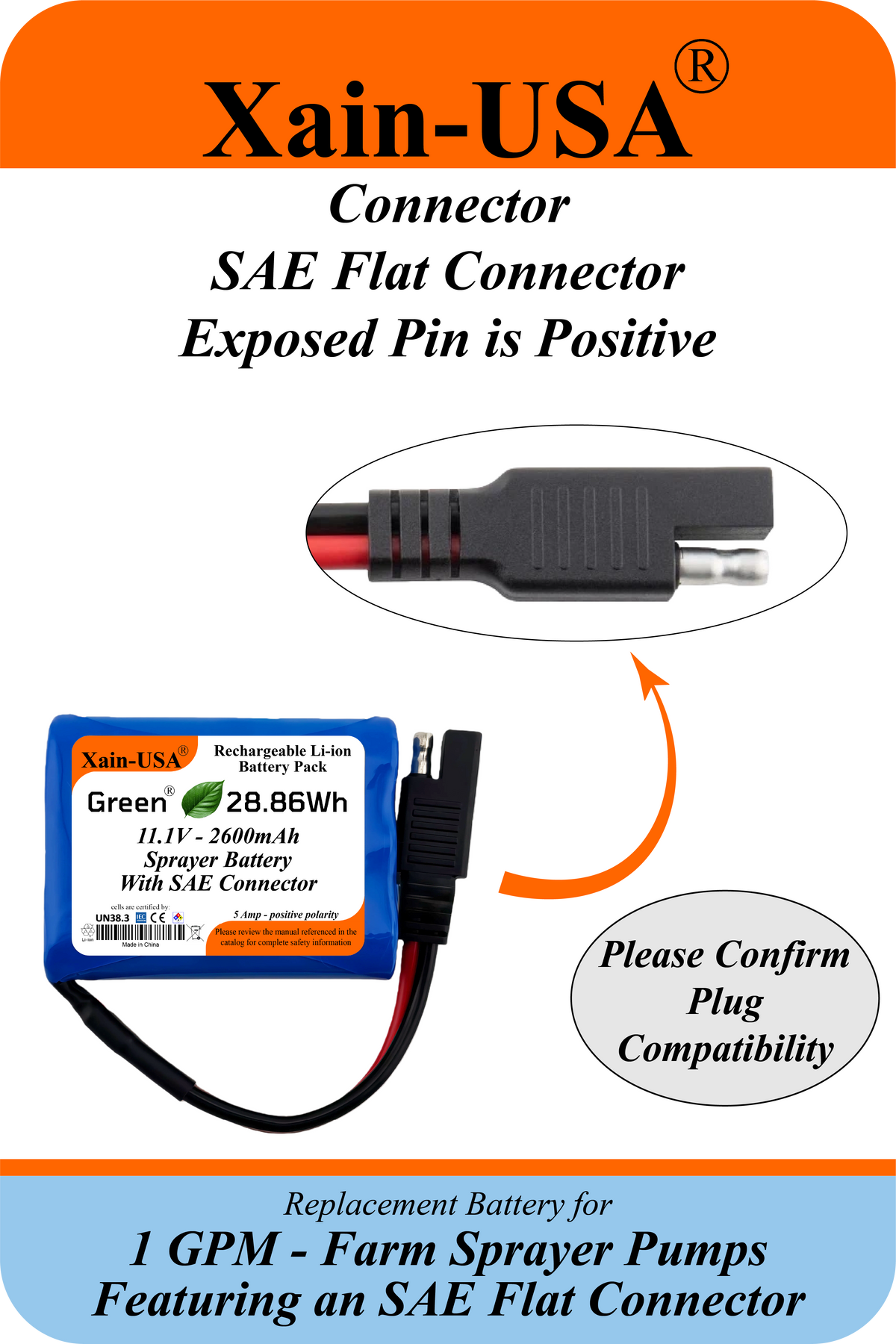

• Connector: SAE 2-pin
• Connector polarity
• Dimensions: 69 × 56 × 18 mm
• Continuous current requirement: 5A maximum
• Available space inside your sprayer

Do not connect the battery if the connector polarity does not match your equipment.

Safe Handling

• Use only a compatible lithium-ion charger designed for a 3S / 11.1V battery pack with a 12.6V charging voltage.
• Do not short-circuit, crush, puncture, disassemble, or modify the battery.
• Keep away from excessive heat, fire, moisture, and extreme temperatures.
• Keep out of reach of children.
• Inspect the battery and wiring before use and discontinue use if damaged.

Battery Manual & Technical Support

Additional battery specifications, safety information, and handling guidance are available through the Xain-USA Battery Manual on our website.

Our U.S.-based support team is also available to help confirm compatibility. If you're unsure whether this battery fits your sprayer, send us the sprayer model number and clear photos of your existing battery, label, and connector so we can help identify the correct replacement.

Peace of Mind with Every Purchase

30-Day Satisfaction Guarantee: If the battery isn't the right fit, it may be returned within our applicable return period and return-policy conditions.

1-Year Warranty: Backed by a one-year warranty against manufacturing defects.

U.S.-Based Customer Support: Have a compatibility question? Our knowledgeable support team is here to help you find the correct battery for your equipment.

Choose Xain-USA — Your Powerhouse for dependable replacement battery solutions.

To ensure the longevity and safety of your lithium-ion (Li-ion) batteries, follow these care instructions:

• Avoid Extreme Temperatures
• Partial Charge is Better
• Avoid Overcharging
• Minimize Exposure to High Discharge Rates
• Store Properly When Unused
• Use Proper Chargers and Cables
• Keep Battery Contacts Clean
