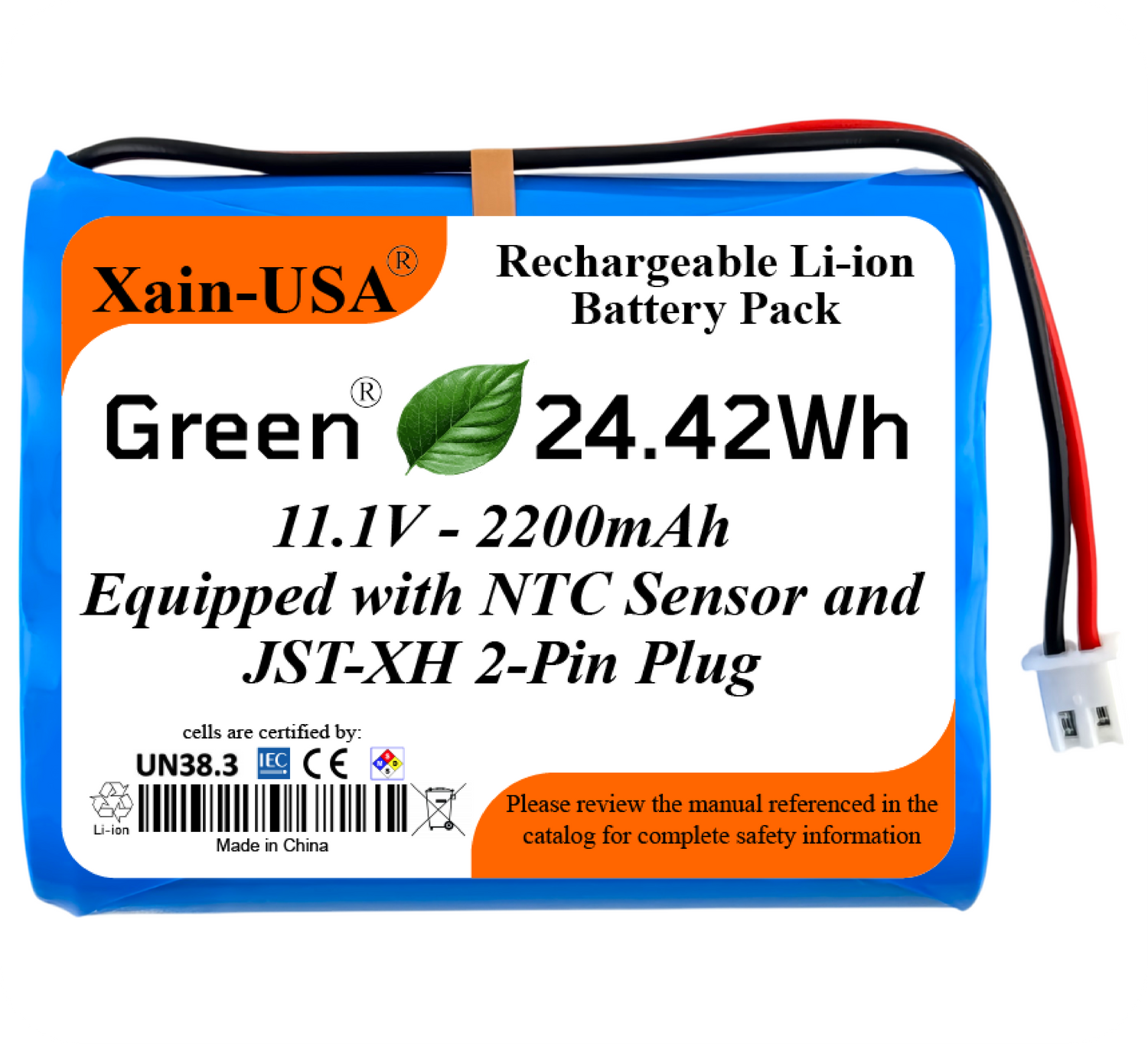

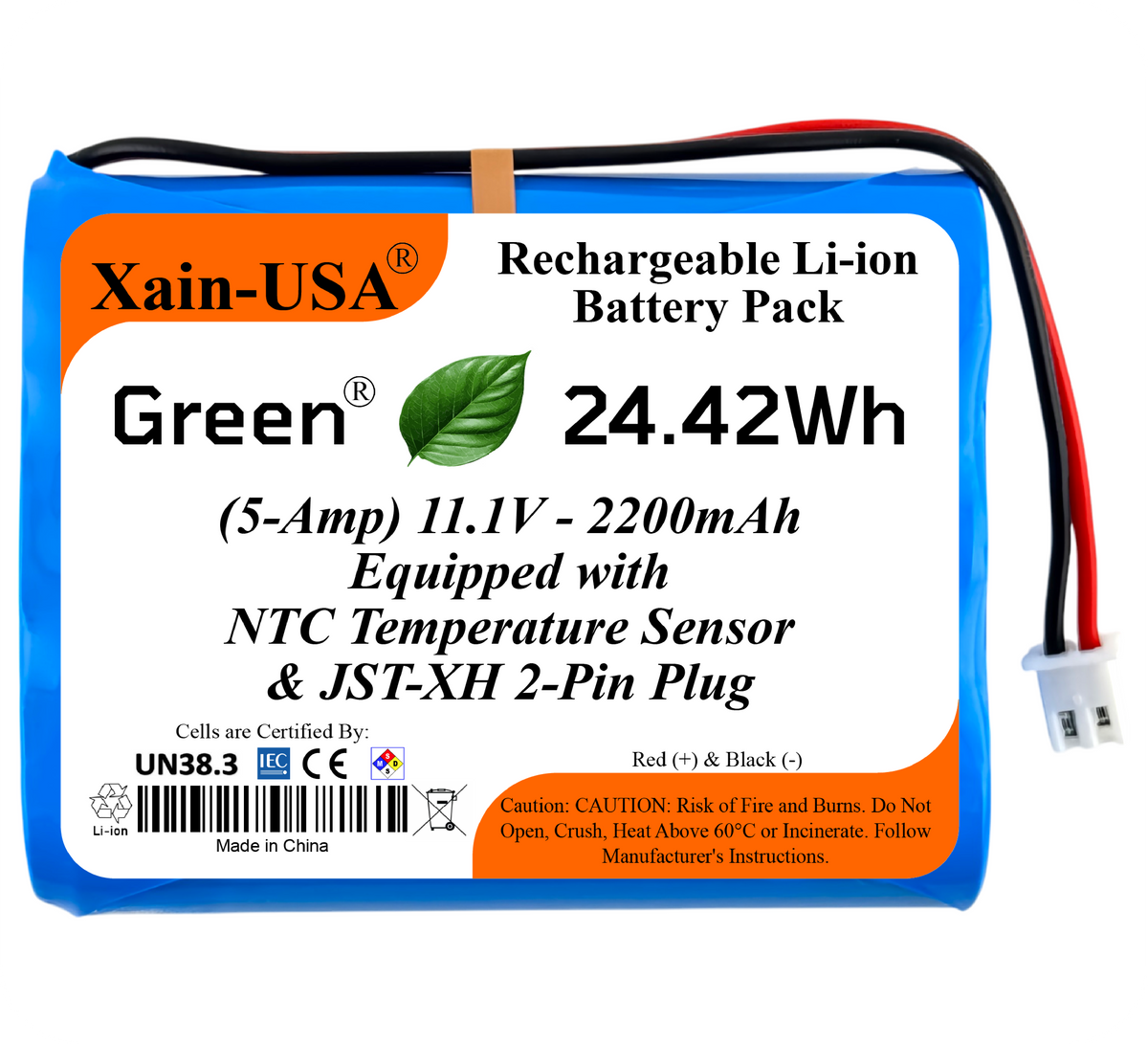

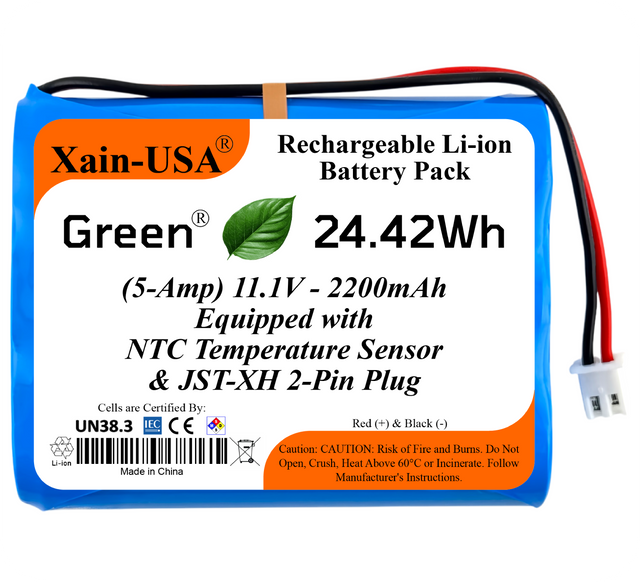

11.1V 2200mAh Rechargeable Li-ion Battery Pack, 3S1P 18650, 24.42Wh, JST-XH 2-Pin Connector, Built-in BMS Protection and NTC Temperature Sensor
11.1V 2200mAh Rechargeable Li-ion Battery Pack, 3S1P 18650, 24.42Wh, JST-XH 2-Pin Connector, Built-in BMS Protection and NTC Temperature Sensor is backordered and will ship as soon as it is back in stock.
Care information
Care information
To ensure the longevity and safety of your lithium-ion (Li-ion) batteries, follow these care instructions:
- Avoid Extreme Temperatures
- Partial Charge is Better
- Avoid Overcharging
- Minimize Exposure to High Discharge Rates
- Store Properly When Unused
- Use Proper Chargers and Cables
- Keep Battery Contacts Clean
Delivery and Shipping
Delivery and Shipping
We ship our products using USPS Ground Advantage 2-5 Delivery. Please note that USPS may experience delays in its network.
Refer to your receipt email for the tracking code to view updates.
11.1V 2200mAh Rechargeable Li-ion Battery Pack, 3S1P 18650, 24.42Wh...
Experience the Xain-USA difference
Enjoy free shipping and 30-day return window on our high-quality batteries
Description
Description
Typical Applications
This 11.1V 2200mAh rechargeable lithium-ion battery pack is suitable for a variety of compatible 11.1V electronic devices and DIY projects, including:
- Consumer electronics
- Robotics and electronic projects
- CCTV and surveillance systems
- Portable speakers and radios
- Fishing and outdoor lights
- Doorbells and security devices
- Handheld fans
- Dog-fetch and interactive toys
- Remote-controlled cars, boats, and crawlers
- RC airplanes and gliders
- Quadcopters and drones
- Automotive and aviation DIY projects
- Compatible portable equipment and specialty electronic devices
Important: Always verify the voltage, connector type, connector polarity, dimensions, charging requirements, and current requirements before purchasing.
Key Features

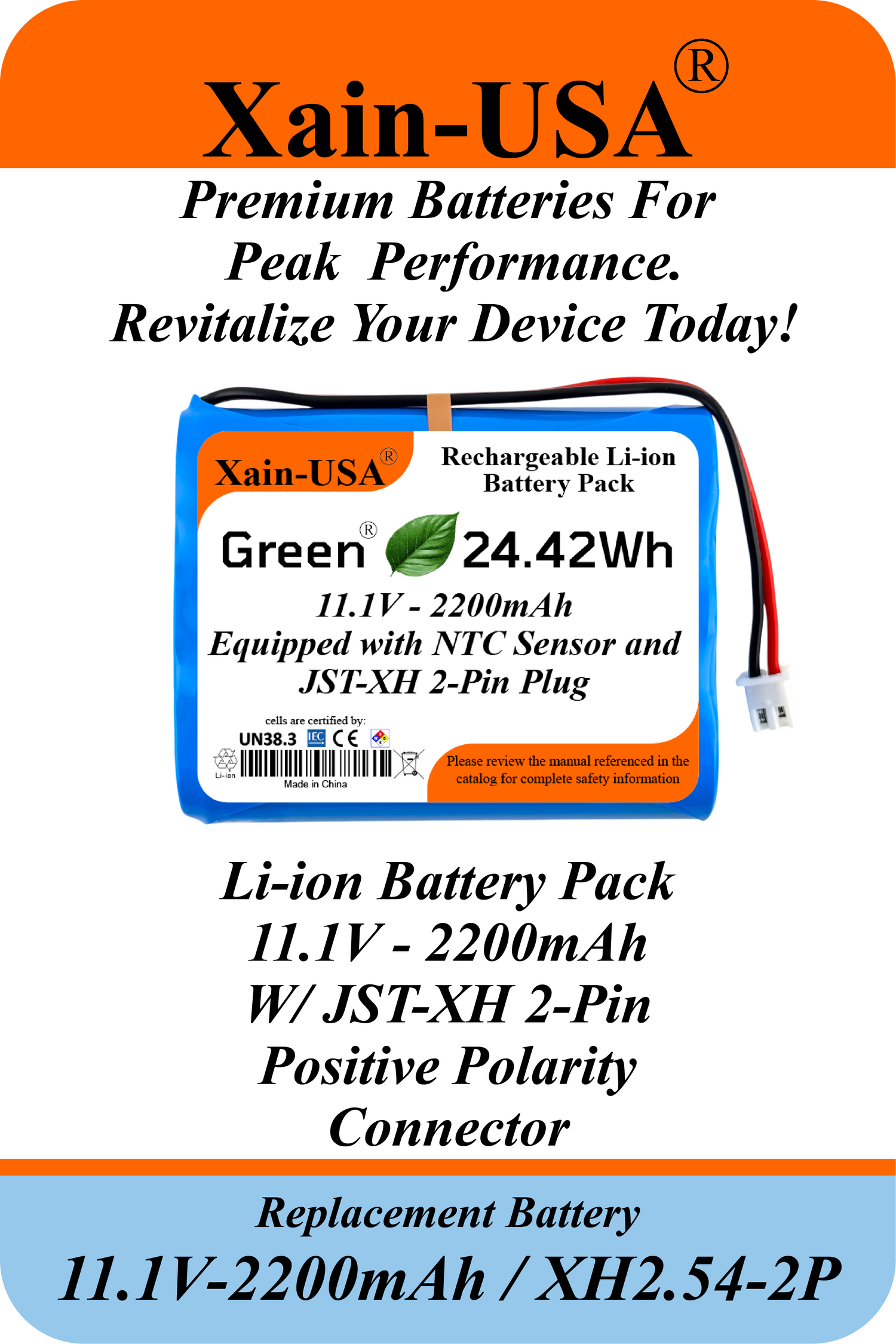

- Rechargeable Li-ion Battery Pack: Reliable 11.1V power source for compatible electronic equipment.
- 3S1P Configuration: Constructed using three 18650 lithium-ion cells connected in series.
- 2200mAh Capacity: Provides 24.42Wh of energy.

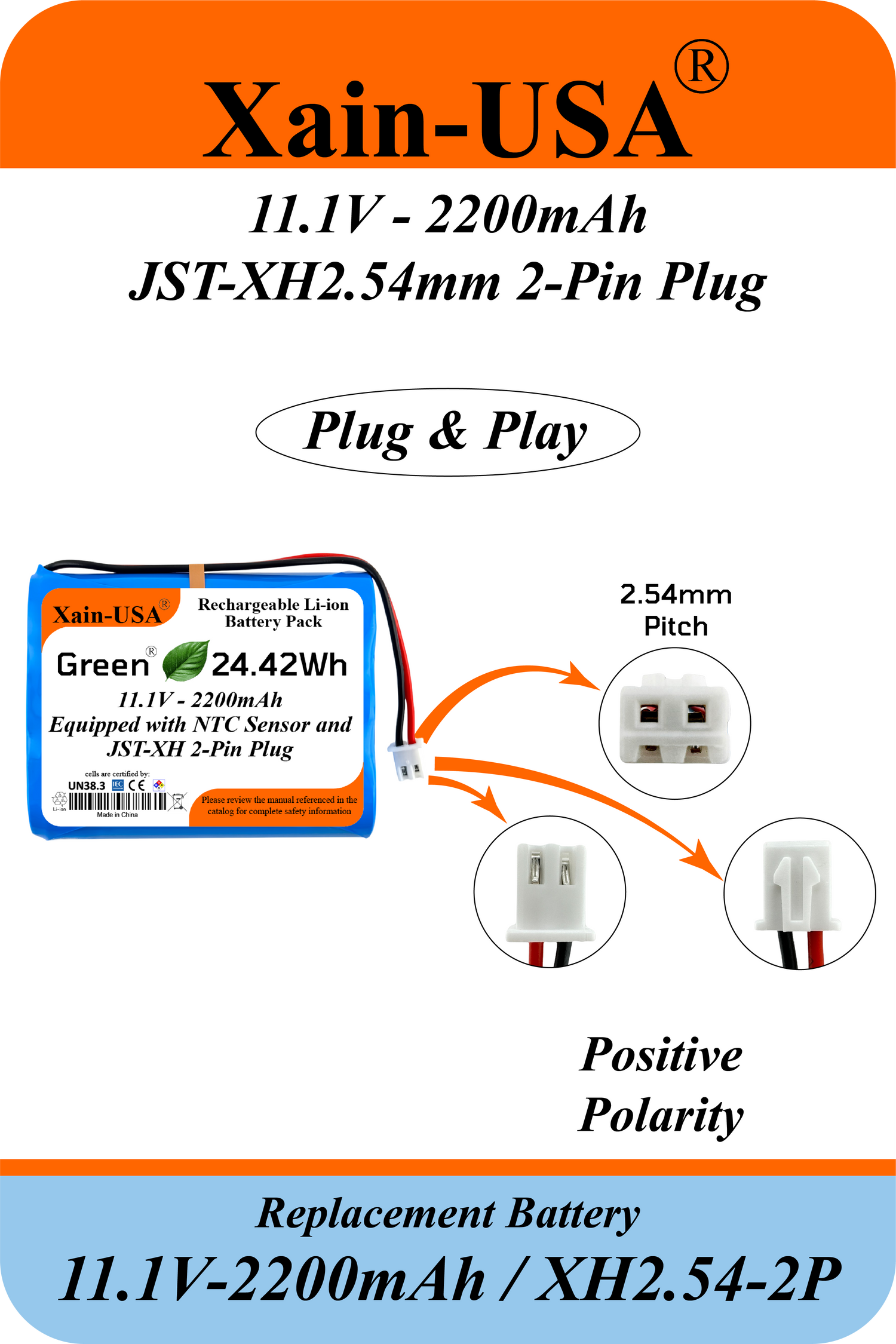

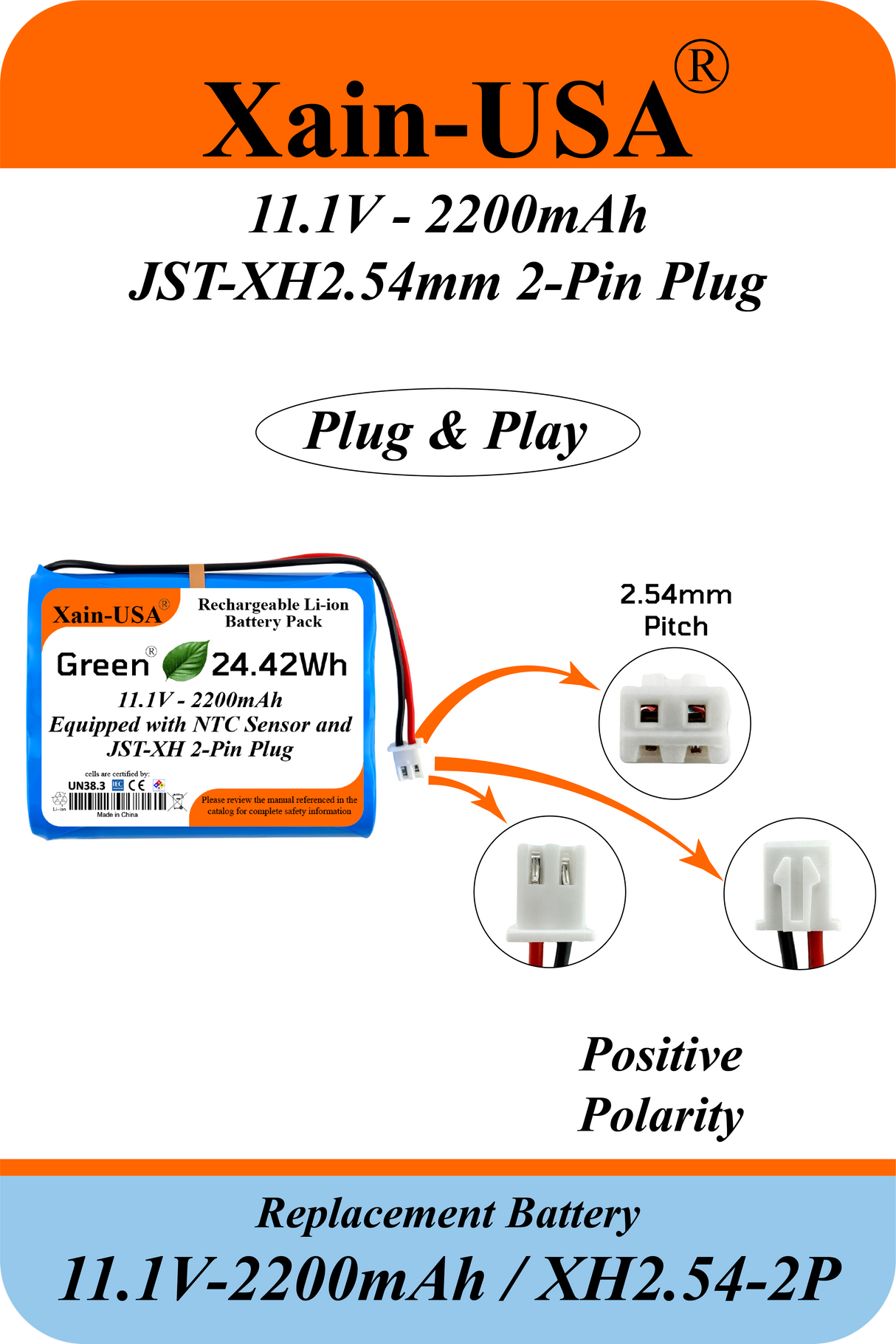

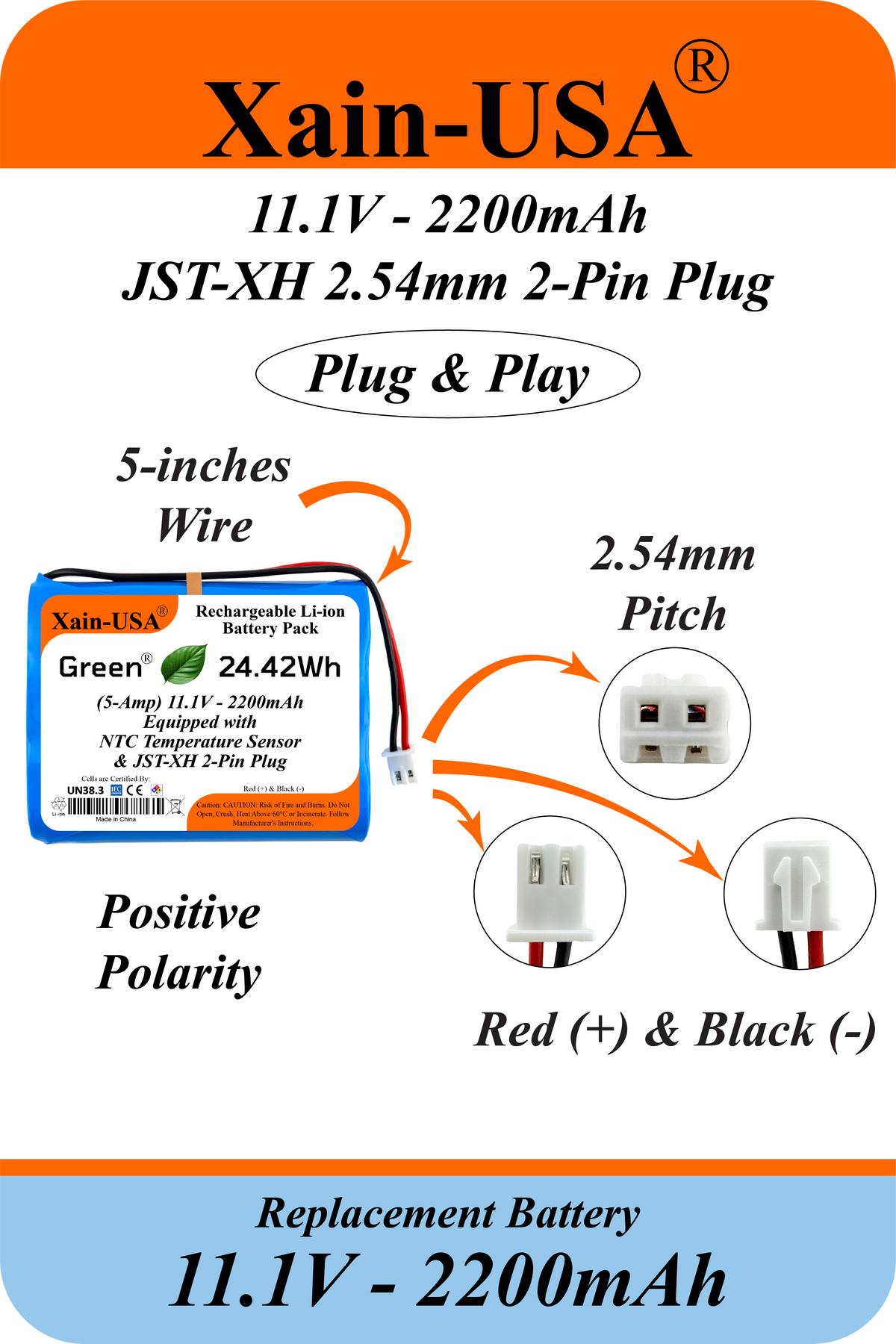

- Connector: JST-XH 2-Pin connector with positive polarity.
- Built-in BMS Protection: Helps protect the battery pack during normal charging and discharging operation.
- NTC Temperature Sensor: Provides temperature monitoring for compatible devices and charging systems.
- Low Self-Discharge: Designed for dependable energy retention during storage.
- Long Cycle Life: Rated for 500+ charge/discharge cycles under specified test conditions.

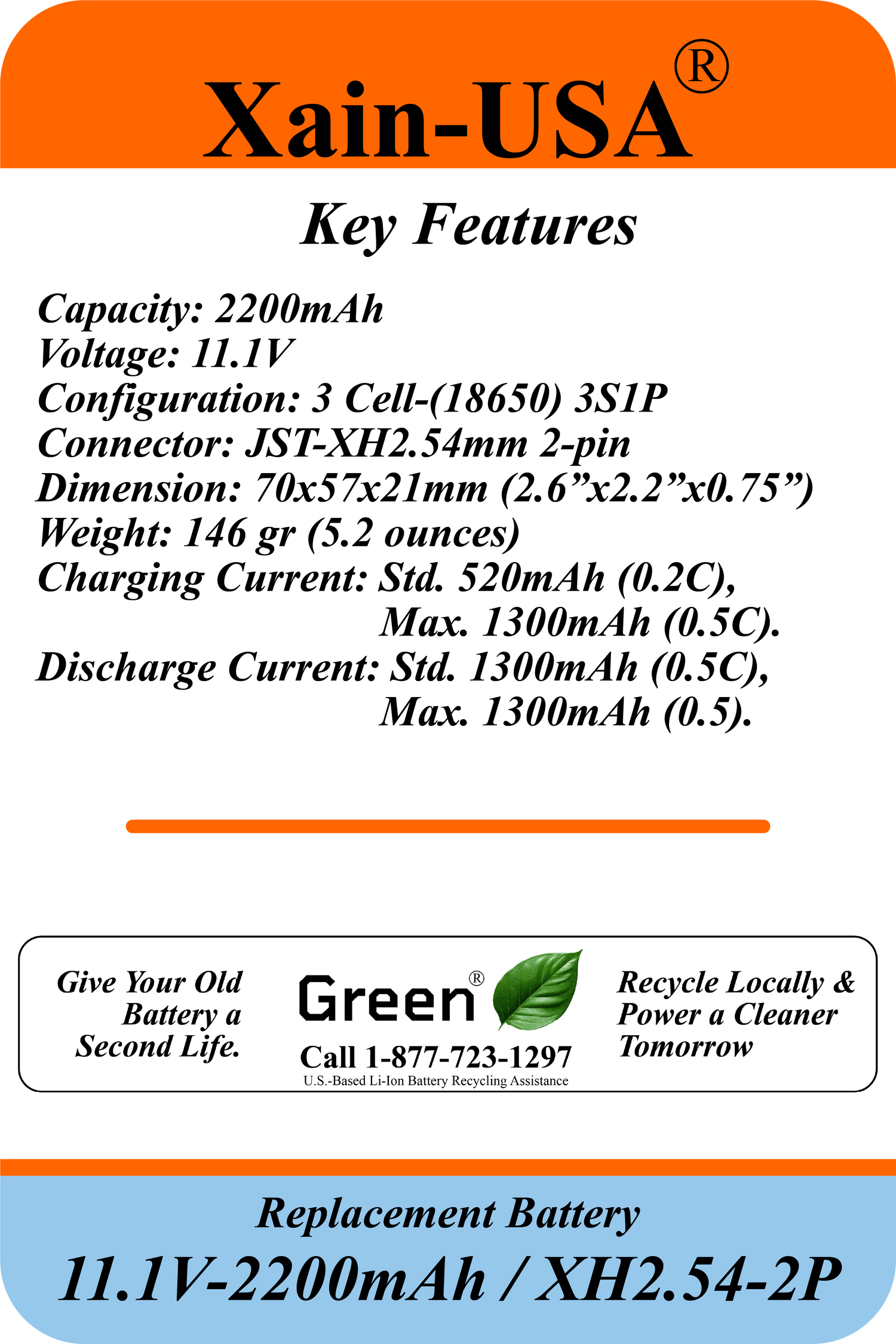

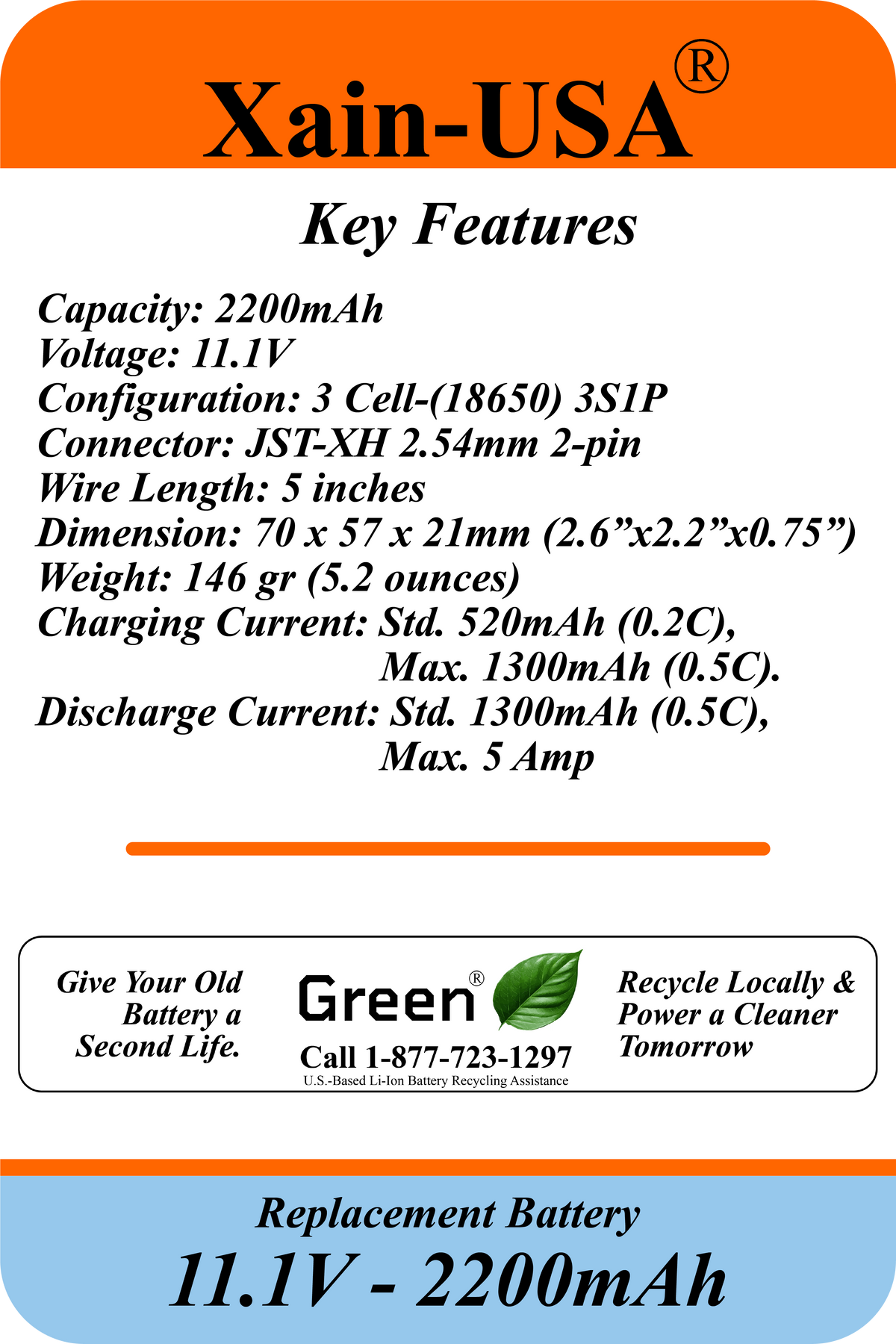

Specifications
- Battery Chemistry: Rechargeable Lithium-ion
- Cell Type: 18650 Li-ion
- Configuration: 3S1P
- Nominal Voltage: 11.1V
- Capacity: 2200mAh
- Energy: 24.42Wh
- Maximum Constant Charging Current: 550mA (0.25C)
- Maximum Continuous Discharge Current: 1100mA (0.5C)
- Cycle Life: 500+ cycles at 25°C under specified test conditions
- Self-Discharge Rate: ≤3% per month at 25°C
- Operating Temperature: -40°C to 85°C
- Recommended Storage Temperature: 10°C to 35°C
- Protection: Built-in Battery Management System (BMS)
- Temperature Monitoring: Built-in NTC temperature sensor
Compatibility Notice
This is a specialized 11.1V 3S Li-ion battery pack. Before ordering, compare your original battery's voltage, connector type, wiring configuration, polarity, dimensions, charging specifications, and current requirements.
Matching voltage alone does not guarantee compatibility.
Bullet Points

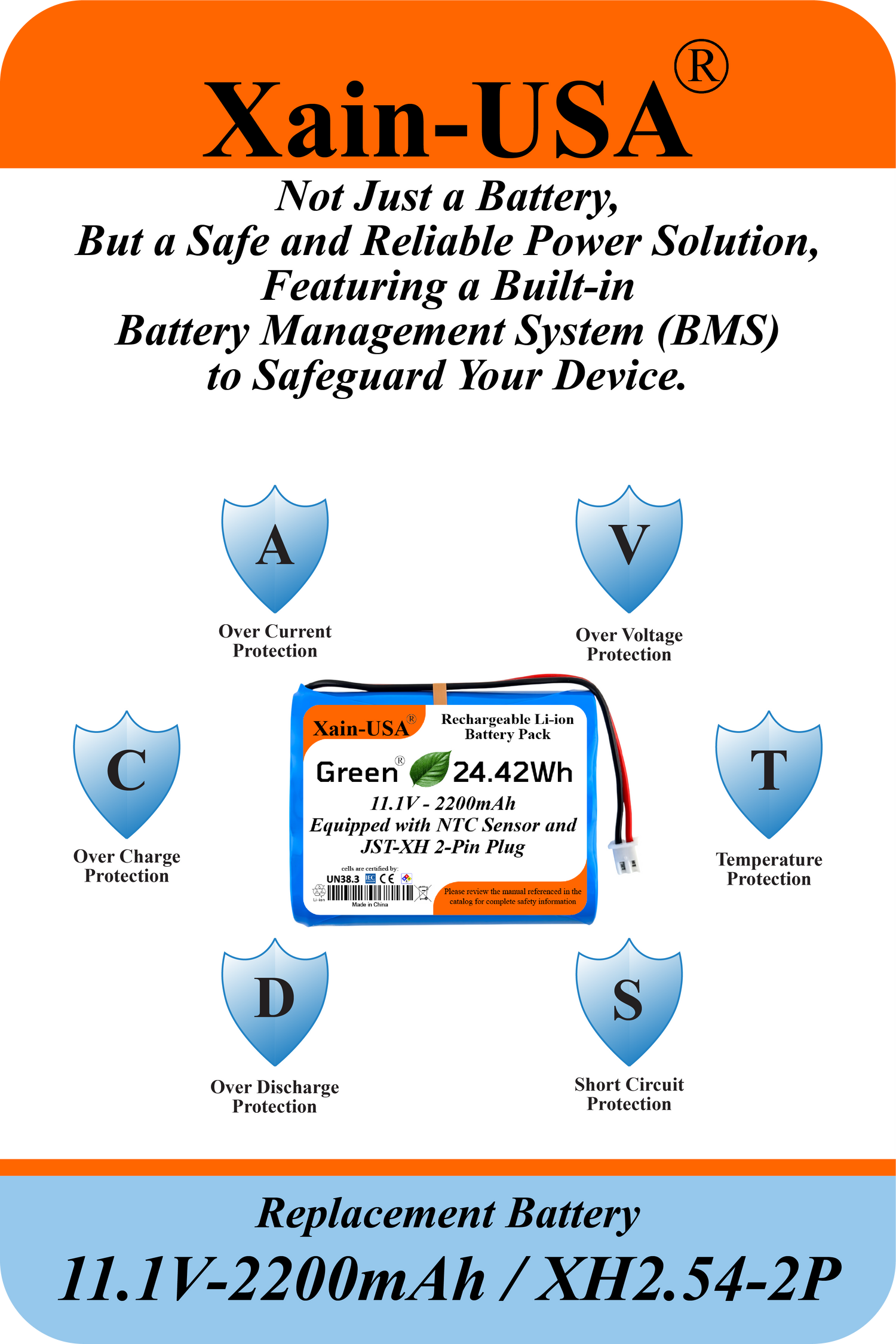

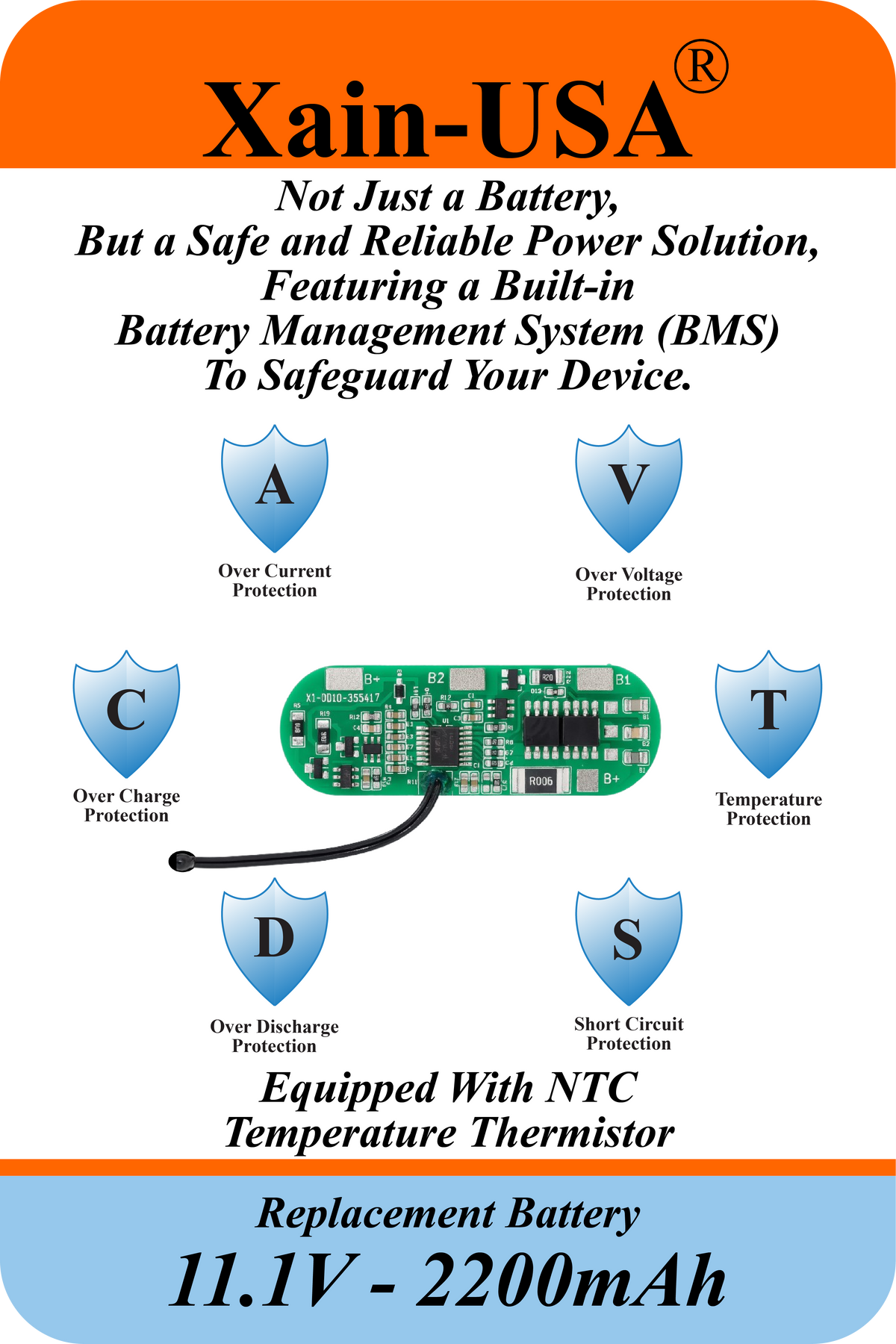

[Enhanced Safety with Built-in Protection]
The battery pack features a built-in protection system designed to help protect against:
- Overcharging
- Over-discharging
- Overcurrent
- Short circuits
The integrated NTC temperature sensor also allows compatible equipment to monitor battery temperature.
[Quality Assurance]
- Quality Manufacturing: Our batteries are sourced from qualified battery manufacturers.
- Rigorous Testing: Battery packs undergo quality-control testing for reliability and performance.
- Documentation: Applicable battery testing and certification documentation is available where specified for the product.
[Safe Handling]
- Use only a compatible charger designed for 3S lithium-ion battery packs.
- Verify connector polarity before installation.
- Do not short-circuit, puncture, crush, disassemble, or expose the battery to fire.
- Store the battery within the recommended temperature range.
- Keep batteries away from children.
[For Your Reference]
The battery manual is available online through the Xain-USA website and includes:
- Technical Specifications: Detailed battery specifications and operating information.
- Safety Information: Guidance for proper charging, storage, handling, and use.
[Peace of Mind with Every Purchase]
- 30-Day Return Policy: Eligible purchases may be returned within 30 days in accordance with our return policy.
- 1-Year Warranty: Backed by a 1-year warranty against manufacturing defects.
- Customer Support: Our team is available to assist with compatibility questions, product specifications, and troubleshooting.
Shop with confidence and experience the Xain-USA difference.
